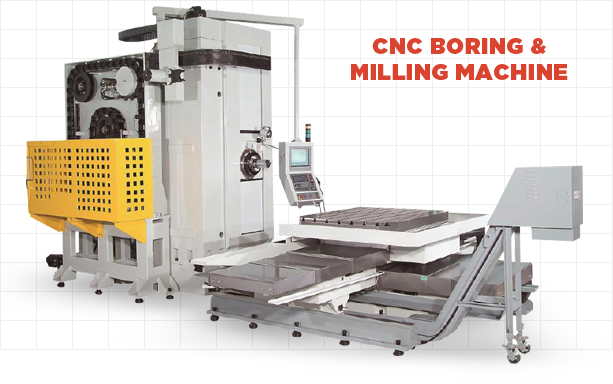

Main Features:
- 47.24" x 59.05" indexing table as standard
- 0.001 degree continuous rotary table with 60.03" x 48.03"
- Rigid spindle with 3000rpm, ISO#50 and fitted with 2 steps speed changer at high speed output.
- Spindle quill diameter 4.33”
- W axis travel 21.65”
- Spindle vibration monitoring system
- AC servo motor provides extremely high torque, power and axis force
- Meehanite cast iron construction provides excellent mechanical stability
- Hardened and ground guide ways allows rigid moving
- C3 double nuts high class precision ballscrews are fitted
- 0.001 degree high indexing accuracy rotary table ( option )
- Large working table allows big working piece machining
- Linear scales on axes and angle encoder on B axis give absolute positioning accuracy on request
- Floor type ATC with 60 tools as a basic selection; different tool pockets are available.
- Light fence system for working area.
- Mechanical counter weight offers headstock stability
- Chip auger device is provided.
- Automatic central lubrication system.
- Coolant system with checked valve
- Low voltage circuit control system
- CE Declaration of Conformity EU countries
Specifications:
 |
| Item |
Standard |
Metric |
| TRAVEL |
|
|
| X axis travel |
86.61” |
2200mm |
| Y axis travel |
62.99” |
1600mm |
| Z axis travel |
62.99” |
1600mm |
| W axis travel |
21.65” |
550mm |
Distance between spindle
center to table center |
0-62.99” |
0-1600mm |
Distance between spindle
nose to table center |
4.52”- 89.44” |
115-2272mm |
| TABLE |
|
|
| Working area of table |
47.54”×59.05” |
1200×1500mm |
| T slot |
.27” x .86” x 5.90” |
7 x 22 x 150mm |
| Table max loading weight |
11023.11 Lbs. |
5000kg |
| Table index (standard) |
1° |
1° |
| SPINDLE |
|
|
| Spindle taper |
ISO No.50 |
ISO No.50 |
| Spindle speed |
35~3000rpm |
35-3000rpm |
| Spindle step |
2 steps(auto.) |
2 steps (auto) |
| Quill diameter (W axis) |
Ø4.3” |
ø110mm |
| Spindle bearing I/D |
Ø5.90” |
ø150mm |
| FEED |
|
|
| X axis rapid feed |
472.44”/min |
12000mm/min |
| Y axis rapid feed |
472.44”/min |
12000mm/min |
| Z axis rapid feed |
472.44”/min |
12000mm/min |
| 3 axes cutting feed |
39.37” ~ 196.85”/min |
1~5000mm/min |
| B axis cutting speed |
11rpm |
11rpm |
| XYZ ballscrew |
ø55 x P12/C3 double nut |
ø55 x P12/C3 double nut |
| W axis ballscrew |
ø40 x P5/C3 double nut |
ø40 x P5/C3 double nut |
| ATC |
|
|
| Pocket |
60 PC |
60 PC |
| Max. tool diameter |
4.92”/9.84” |
125/250mm |
| Max. tool length |
11.81” |
300mm |
| Max. tool weight |
55.11 Lbs. |
25kg |
| Time of tool change (T-T) |
9 |
9 |
| MOTOR |
|
|
| Spindle motor ( 30 minute/continuous ) |
24.8/20.11(std.)/
29.5/24.08(opt.) hp |
18.5/15(std.)/
22/18.5(opt.) kw |
| X axis motor (Fanuc/Heidenhain) |
5.36/9.65hp |
4/7.2kw |
| Y axis motor (Fanuc/Heidenhain) |
8.04/11.53hp |
6/8.6kw |
| Z axis motor (Fanuc/Heidenhain) |
5.36/9.65hp |
4/7.2kw |
| B axis motor (Fanuc/Heidenhain) |
5.36/7.64hp |
4/5.7kw |
| W axis motor (Fanuc/Heidenhain) |
4.02/2.23hp |
3/1.67kw |
| Hydraulic motor |
5.02 hp |
3.75kw |
| Coolant pump motor |
2.2 hp |
1.7kw |
| Slideway lubrication motor |
12w |
12w |
| Floor occupation |
185.63” x 296.96” x 145.90” |
4715 x 7543 x 3706mm |
| Total weight |
49604.00 Lbs. |
22500kg |
|
* Specifications are subject to change without notice.
Standard Accessories:
- Fanuc 31iMB CNC Control
- Spindle oil chiller
- Auto power off
- Chip auger for table & chip conveyer
- Coolant system
- Hydraulic system
- Auto lubrication system
- Program end & alarm lamp
- RS232 interface
- Work lamp
- MPG box
- Machining leveling plate
- Operation manual
|
Optional Accessories:
- Fagor and Siemens Controls available
- Angle milling head
- Universal milling head
- Angular Block, 31.49” x 20.66” x 31.49”
- Facing head with telescopic tool holder
- Spindle extension sleeve
- 25 bar or 70 bar high pressure coolant through spindle
- Table guard for CTS
- Safety guard at operator side
- Linear scale for X/Y/Z axes (Fagor or Heidenhain brand)
- Power transformer
- Continuous Rotary Table
|
|
