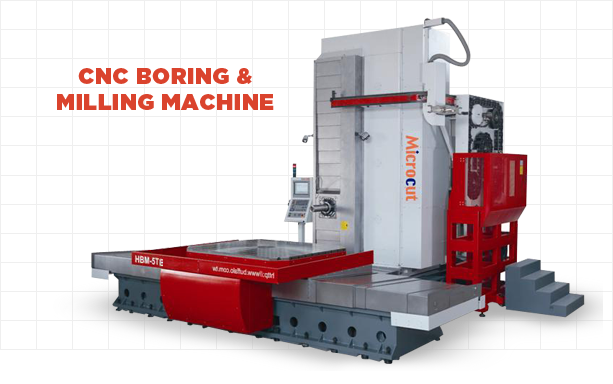

Main Features:
- Cross Travel 177.16", Vertical Travel 125.98"
- Column Travel 78.74", Spindle Travel 27.55"
- T-Type construction
- 98.42" x 98.42" B-Axis rotary table
- 0.001 degree high indexing accuracy rotary table
- 20 tons table loading (30 ton optional)
- Rigid spindle with 3000 rpm, ISO #50 and fitted with 2 steps speed changer at high speed out
- Meehanite cast iron construction provides excellent mechanical stability
- Roller type linear guide ways on X/Z axes offer fast rapid feed & box way with hardened and ground on Y axis allows headstock to work rigid moving
- C3 double nuts high class precision ballscrews are fitted
- Linear scales on axes and angle encoder on B axis give absolute positioning accuracy
- Floor type ATC with 60 tools
- Hydraulic counter weight offers headstock stability and perfect products finishing
- Chip auger device is provided
- Automatic central lubrication system
- Coolant system with checked valve
- Low voltage circuit control system
- CE Declaration of Conformity for EU countries
|
