Microcut

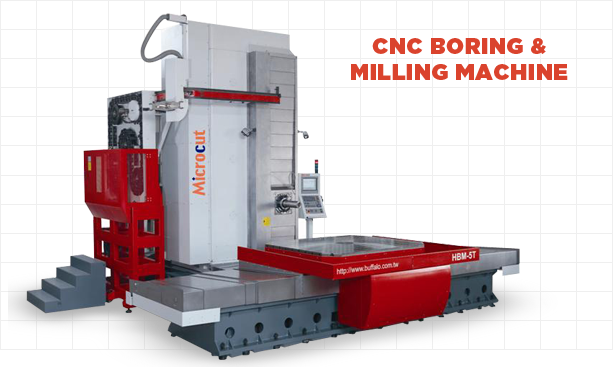

Challenger HBM-5T
  Main Features:
  • Cross Travel 137.79", Vertical Travel 102.36"
  • Column Travel 53.14", Spindle Travel 27.55"
  • T-Type construction
  • 70.86" x 86.61" B-Axis rotary table
  • 0.001 degree high indexing accuracy rotary table
  • 15 tons table loading (20 ton optional)
  • Rigid spindle with 3000 rpm, ISO #50 and fitted with 2 steps speed changer at high speed out
  • Meehanite cast iron construction provides excellent mechanical stability
  • Roller type linear guide ways on X/Z axes offer fast rapid feed & box way with hardened and ground on Y axis allows headstock to work rigid moving
  • C3 double nuts high class precision ballscrews are fitted
  • Linear scales on axes and angle encoder on B axis give absolute positioning accuracy
  • Floor type ATC with 60 tools
  • Hydraulic counter weight offers headstock stability and perfect products finishing
  • Chip auger device is provided
  • Automatic central lubrication system
  • Coolant system with checked valve
  • Low voltage circuit control system
  • CE Declaration of Conformity for EU countries
 View Specifications  Back to Top
