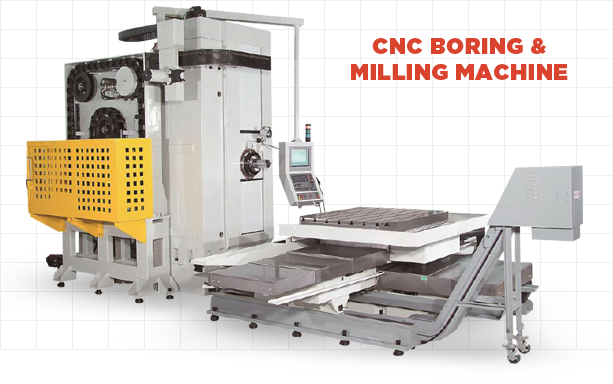

Main Features:
- 47.24" x 59.05" indexing table as standard
- 0.001 degree continuous rotary table with 60.03" x 48.03"
- Rigid spindle with 3000rpm, ISO#50 and fitted with 2 steps speed changer at high speed output.
- Spindle quill diameter 4.33”
- W axis travel 21.65”
- Spindle vibration monitoring system
- AC servo motor provides extremely high torque, power and axis force
- Meehanite cast iron construction provides excellent mechanical stability
- Hardened and ground guide ways allows rigid moving
- C3 double nuts high class precision ballscrews are fitted
- 0.001 degree high indexing accuracy rotary table ( option )
- Large working table allows big working piece machining
- Linear scales on axes and angle encoder on B axis give absolute positioning accuracy on request
- Floor type ATC with 60 tools as a basic selection; different tool pockets are available.
- Light fence system for working area.
- Mechanical counter weight offers headstock stability
- Chip auger device is provided.
- Automatic central lubrication system.
- Coolant system with checked valve
- Low voltage circuit control system
- CE Declaration of Conformity EU countries
|
